DESCRIPTION

Wheel Center: Polypropylene (PP) White

Bearing: Double Ball Bearning

Threadguard: Without

Maximum Load Capacity: 40kg

Galvanized and blue passivated sheet steel housing, pivot bearing with a double ball race, screwing by plate with hole pattern 60 x 48 mm,

housing with material strength 1.5 mm (fitting) and 1.5 mm (fork), clearance between the fork 25 mm, wheel rim made of polypropylene with

a tread made of polypropylene white colored, hub width 23 mm, plain bearing, screwed wheel axle (incl. all axle material).

VIMA light duty castor series offer the smoothest operation at very competitive prices. Bright chrome plating ensured good looks along with

sound engineering.

TECHNICAL SPECIFICATIONS

Model	Wheel Material	Wheel Dia(mm)	Wheel Width(mm)	Load Height(mm)	Plate Size(mm)	Mounting Dimention(mm)	Hole Diameter(mm)	Load Capacity(kg)
V1150-2	PP+PU	Φ50	22	65	60*48	46*35	6.2	25
V1150-2.5	PP+PU	Φ65	23	82	65*54	51*38	6.2	35
V1150-3	PP+PU	Φ75	255	97	70*58	54*41	8.2	40

FIXED | SWIVEL | BRAKE OPTIONS

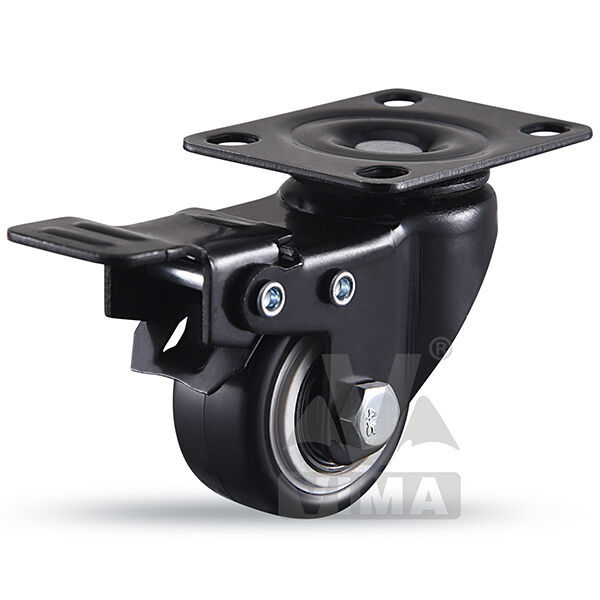

★ MATERIAL - Made of non-marking rubber and entire support mental brackets; 360-degree pivoting action for smooth rolling on hard, smooth surfaces.

★ MULTIPLE USES - It can be used on light and medium duty material handling, carts, equipment, and projects.

★ LOCK MECHANISM - Total locking brake efficiently locks both the swivel and caster simultaneously, providing an extremely reliable and sturdy base when engaged.

★ LOAD CAPABILITY - Each caster supports 40kg/120kg Per Set (counting of 3).

★MULTIPLE USE - The wheels can be used for a multitude of applications, light and medium duty material handling, carts, equipment and projects.

Including coffee table, plant stands, book shelves, shoe bins, toy bins, under-bed storage, shopping carts, workbench.

★ ONE YEAR WARRANTY - Free replacement if it's not human being broken.

Why Choose VIMA Casters

✔ ISO9001-2015 quality standard.

✔ Provide OEM and ODM service.

✔ EN 840 certification, China Famous Brand, and Qulity Trustworthy Product awards.

✔ Testing equipments: Material Tester, Metal Tester, Salt Spray Tester, High Temperature Tester, Weight Bearing Walking Tester and Brake Fatigue Tester

✔ 100% factory outlet, to help you to control the quality easily, save cost and quickly to delivery

✔ High-quality materials and complete durability

✔ Simple set-up and easy maneuvering

SAVE YOUR BACK AND EFFORT:

Are you pushing or carrying your equipment from one place to another ? Don't put pressure on your back and save your energy by installing these VIMA

Castors Wheels to your equipment, and watch how easy and effortlessly you can manoeuvre your furniture or equipment to your desired location.

SAFE FOR ALL FLOOR TYPES:

Our castors are safe for all floor types ( laminate, wood, tile, glass, carpet, concrete, marble and many more...).

You will not have to worry about having marks on your kitchen tiles, laminate flooring or even be concerned about having your expensive carpet being

chewed by low quality castors.

UNIVERSAL USE:

The VIMA caster wheels are ideal for a huge variety of uses in your home to industrial applications such as: house, schools, dolly, garage, shops, trolleys,

hospitals, tool boxes and Light Machinery

Perfect castor wheels for small to large equipment and small space furniture including: Display / Exhibition Equipment, Dollies, ottoman, coffee table,

plant stands, pallets, garden, bookshelves, shoe bins, toy bins, shopping carts, workbench, under bed storage, planter or your table saw.

PACKING

In order to avoid the damage of caster products in shipping, we provide the products with the packaging requirements to meet the needs of customers.
